Hot water engineering solutions for public swimming pool halls

Short Description:

Swimming pool hot water conditions are special, the general water temperature is controlled at about 28 degrees Celsius; the hot water system requires a high energy efficiency ratio, to meet the constant temperature demand of the swimming pool, but also to meet the needs of showers.


  • Location: Indoor / Outdoor
  • Market: for Resort / Hotel / School /Health canter / Public / Rooftop
  • Installation: In-ground / Above-ground
  • Material: Concrete / Acrylic / Fiberglass / Stainless Steel Pools
  • Product Detail

    SWIMMING POOL SERVICE

    Product Tags

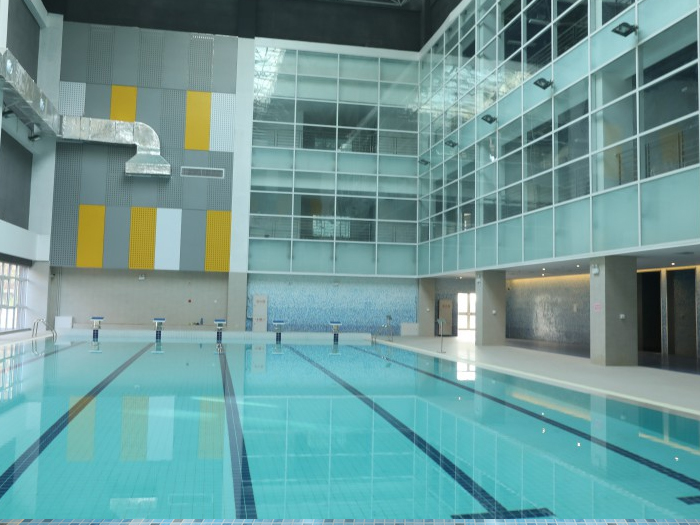

    Indoor swimming pool Design

    Location: indoor
    Market: for School
    Installation: in-ground
    Material: concrete

    Swimming pool hot water engineering requirements

    Swimming pool hot water conditions are special, the general water temperature is controlled at about 28 degrees Celsius; the hot water system requires a high energy efficiency ratio, to meet the constant temperature demand of the swimming pool, but also to meet the needs of showers.

    Temperature

    1. The standard water temperature of the indoor constant temperature swimming pool should be kept between 26.5 degrees and 28 degrees all year round. In winter, the room temperature should reach 30 degrees, and the water temperature should be between 26-28 degrees, which is 2-3 degrees lower than the room temperature.

    SEASON

    2. The water temperature in different seasons must be adjusted appropriately to ensure that guests can enjoy a comfortable experience.

    1. Design basis for hot water system: (take a fitness club swimming pool in Guangdong as an example)

    The swimming pool is 18 meters long, 13 meters long, and 2 meters deep. The total water volume is about 450 cubic meters. The design water temperature is 28°C. The focus of this design is to meet the heat loss of the swimming pool in winter. The pool water temperature is maintained at the design water temperature, and the pool water heating design water temperature is 28°C.

    2. Design parameters

    1) (Guangdong) Outdoor calculation parameters:

    In summer, the dry bulb temperature is 22.2℃, the wet bulb temperature is 25.8℃, and the relative humidity is 83%;

    Over season dry bulb temperature is 18℃, wet bulb temperature is 16℃, relative humidity is 50%;

    Winter dry bulb temperature 3℃, relative humidity 60%

    2) Interior design parameters:

    In summer, the dry bulb temperature is 29℃, the wet bulb temperature is 23.7℃, and the relative humidity is not more than 70%;

    During the transition season, the dry bulb temperature is 29°C, the wet bulb temperature is 23.7°C, and the relative humidity is not more than 70%;

    In winter, the dry bulb temperature is 29°C, the wet bulb temperature is 23.7°C, and the relative humidity is not more than 70%.

    3) Determination of swimming pool water temperature:

    The pool water temperature of the swimming pool can be designed according to the use of the swimming pool according to the following values:

    indoor swimming pool:

    A. Competition swimming pool: 24~26℃;

    B. Training swimming pool: 25~27℃;

    C. Diving swimming pool: 26~28℃;

    E. The water temperature of the open-air swimming pool should not be lower than 22℃.

    D. Children's swimming pool: 24~29℃;

    GREAT POOL HEAT PUMP

    Note: For swimming pools attached to hotels, schools, clubs and villas, the pool water temperature can be designed according to the value of the training pool water temperature.
    GREAT POOL constant temperature swimming pool heat pump
    For the heat source equipment of the swimming pool constant temperature system, the company recommends the use of the swimming pool room temperature series to ensure 24-hour constant temperature hot water. Special materials are used inside the unit, which can effectively solve the problems of scaling and corrosion of the heat exchanger of the unit. Provide healthy and comfortable hot water, stabilize the suitable temperature, and ensure the comfort of the human body.



    The GREATPOOL constant temperature swimming pool heat pump titanium unit uses a titanium tube heat exchanger, which has super anti-corrosion ability and can resist the erosion of fluoride ions in the water. With high heat transfer coefficient and heat exchange effect, it is also a high standard equipment in swimming pool equipment. Using Copeland’s high-efficiency and flexible scroll compressor, the unit has stable operating performance and high heating efficiency; it has a circling gas balance and oil balance design to ensure stable operation of the unit; full intelligent control, display screen true color luminous design, advanced System design, intelligent refrigerant and lubrication control technology, can effectively avoid the deposition of oil, improve the reliability and stability of the system and operating efficiency, the control system is humanized design, and the operation is convenient. GREATPOOL air energy unit has automatic memory function after power failure, no need to reset after power on, work as usual, convenient and worry-free;

    What We Can Do For You

    Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam

    https://www.greatpoolproject.com/pool-design/

    Professional Design

    GREATPOOL provides in-depth design drawings of pipelines and pump rooms

    https://www.greatpoolproject.com/project_catalog/pool-equipment-system/

    Pool Equipment Production

    25 years of professional pool water treatment equipment production

    https://www.greatpoolproject.com/pool-constructioninstallation/

    Construction technical support

    Oversea Construction technical support

    Related Products

    We design, manufacture and supply high-quality equipment and systems for the construction or renovation of commercial, institutional and public water facilities and water features.

    Check Out Some of Our Project

    Provide professional swimming pool, water landscape, water park, hot water project water treatment systems

    LET US HELP DESIGN YOUR POOL PROJECT


  • Previous:
  • Next:

  • If  You Have Swimming Project, Please Provide Necessary Information To Us As Follows:
    1 Provide us with the CAD drawing of your project if possible.
    2 Swimming pool basin’s size, depth and other parameters.
    3 Swimming pool type, outdoor or indoor pool,heated or not, located floor or inground.
    4 Voltage standard for this project.
    5 Operation System
    6 Distance from the swimming pool to the machine room.
    7 Specifications of pump, sand filter, lights and other fittings.
    8 Need a disinfection system and heating system or not.

    Our solutions for Swimming pool design, Pool equipment production, pool construction technical support.



    Greatpoolproject-Our Solutions for Pool Construction02

    Our Factory Show

    All of our pool equipment comes from our factory.

    Greatpoolproject-Our Factory Show

    Swimming Pool Construction and Installation Site

    We provide on-site installation services and technical support.

    Greatpoolproject-Swimming Pool Construction and Installation Site

    Customer Visits & Attend The Exhibition

    We welcome our friends to visit our factory and discuss project cooperation.

    Also,we can meet at international exhibitions.

    Greatpoolproject-Customer Visits & Attend The Exhibition

    Greatpool is a professional commercial swimming pool manufacturer and pool equipment supplier. Our swimming pool projects are over the world.
