* Features
1. Normally, 1-2g/h ozone for 1 cubic meter water/hour, water circulation time 6-8hours/day. Could replace completely the chlorine. For example: A 120m3 pool, water circulation time 6hours/day, so, 20m3 water/hour,a 10-20g/h oxygen source ozone generator is suitable for it.
2. It still needs some accessories. The ozone-water mixing device is venturi, pressure pump is used to increase the water flow rate in venturi, reaction tank is used to store the after mixing ozone-water for a better mxing.
3. For small swimming pools, we can also use our YTseries all-in-one ozone water machines. (all accessaries are included)
4. YTseries all-in-one ozone water machines can also be used in drinking water treatment, generating ozone water for appliance desinfection etc.
| oxygen source ozone generator | |||
| ozone concentration ( 80-100mg/l ) | |||
| model | ozone production | cooling | power |
| YT-015 | 10g/h | air cooling | 680w |
| YT-015 | 15g/h | air cooling | 780w |
| YT-016 | 20g/h | water cooling | 850w |
| YT-016 | 30g/h | water cooling | 950w |
| YT-016 | 40g/h | water cooling | 600+air compressor |
| YT-017 | 50g/h | water cooling | 650+air compressor |
| YT-017 | 60g/h | water cooling | 700+air compressor |
| YT-017 | 80g/h | water cooling | 800+air compressor |
| YT-018 | 100g/h | water cooling | 950+air compres |
| HY-018 | 150g/h | YT-018 | 150g/h |
| HY-018 | 200g/h | YT-018 | 200g/h |
| HY-019 | 300g/h | YT-019 | 300g/h |
| HY-020 | 400g/h | YT-020 | 400g/h |
| HY-021 | 500g/h | YT-021 | 500g/h |
| HY-022 | 600g/h | YT-022 | 600g/h |
| HY-023 | 700g/h | YT-023 | 700g/h |
| HY-024 | 800g/h | YT-024 | 800g/h |
| HY-024 | 900g/h | YT-024 | 900g/h |
| HY-025 | 1000g/h | YT-025 | 1000g/h |

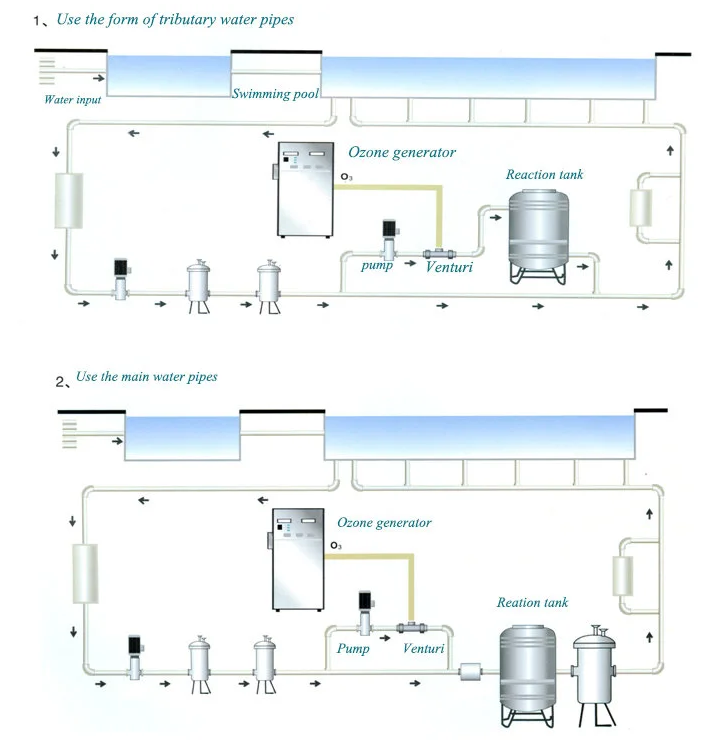

* Ozone generator swimming pool water treatment Installation diagram

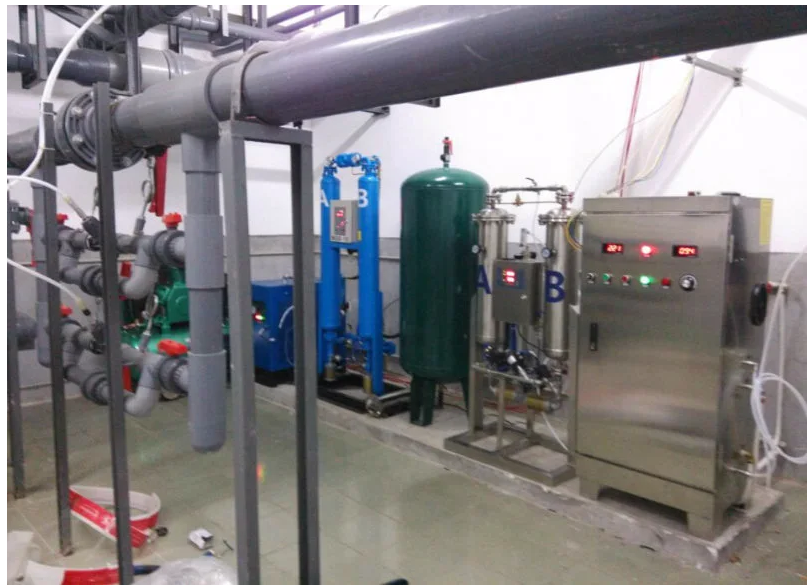

* Ozone generator swimming pool water treatment Installation site
Post time: Jan-27-2021
