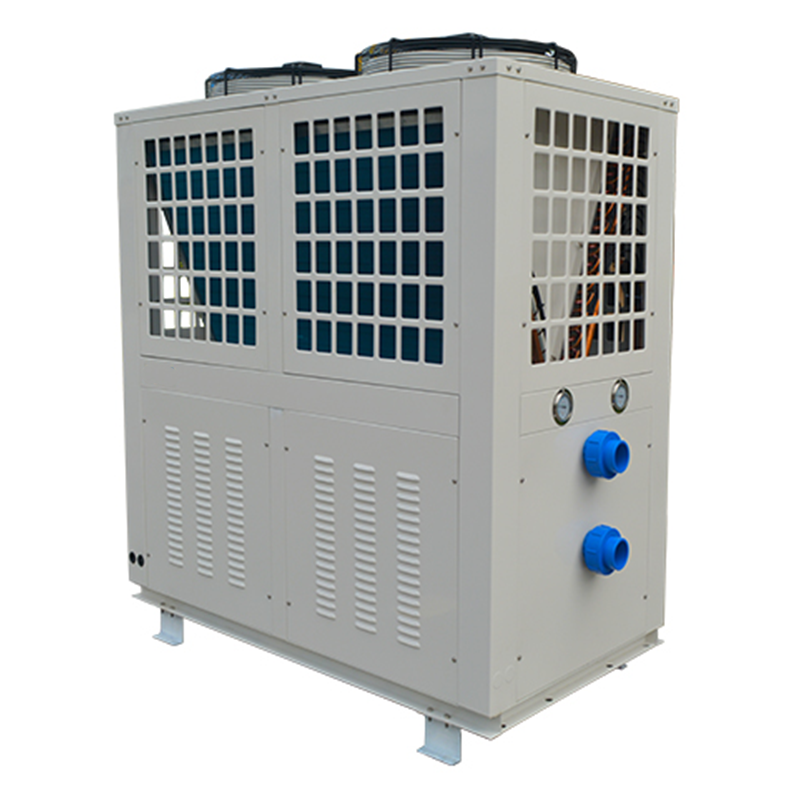

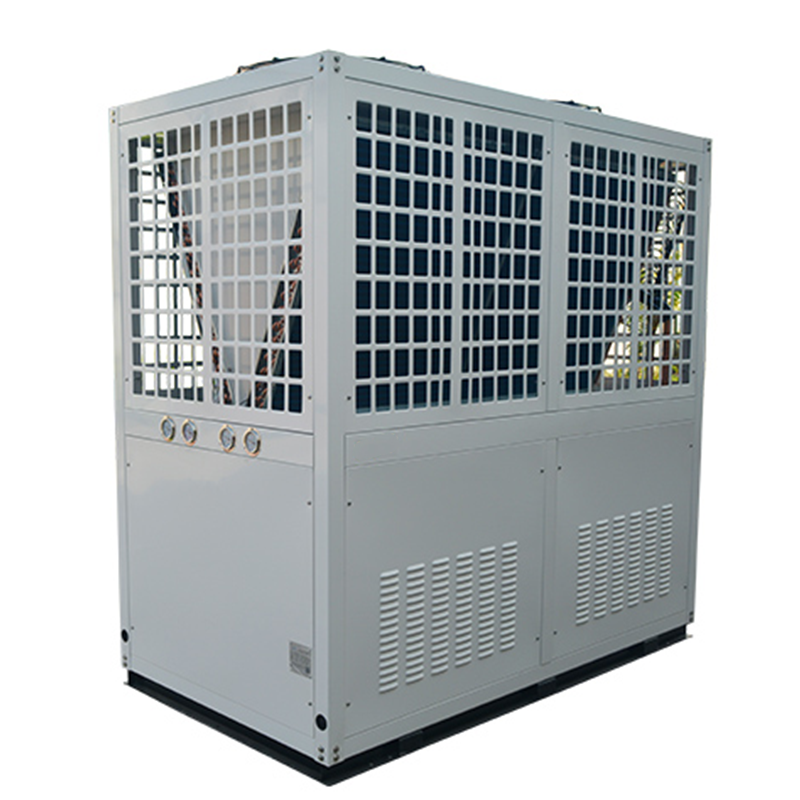

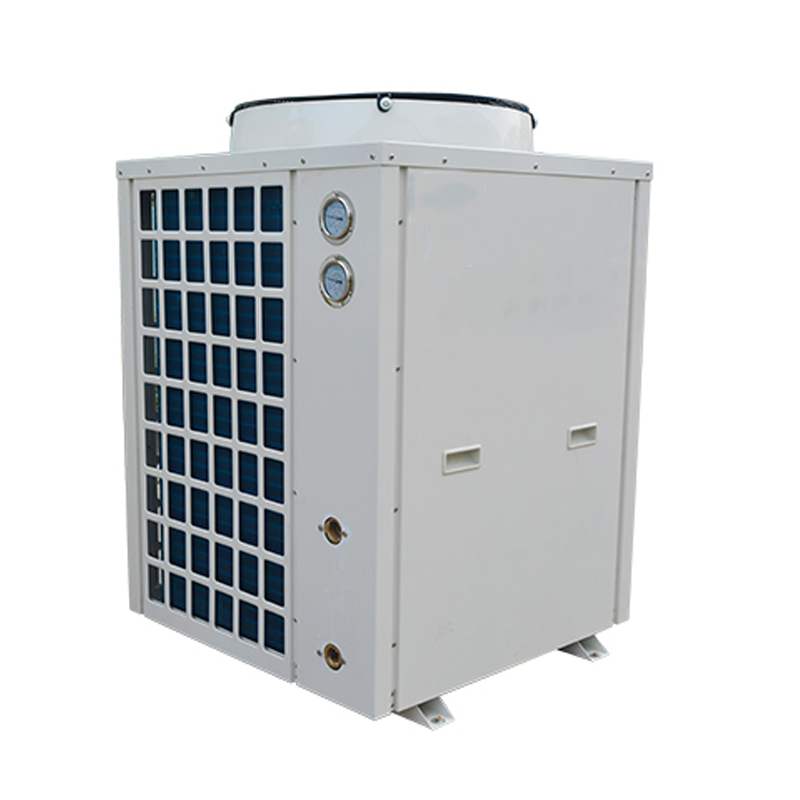

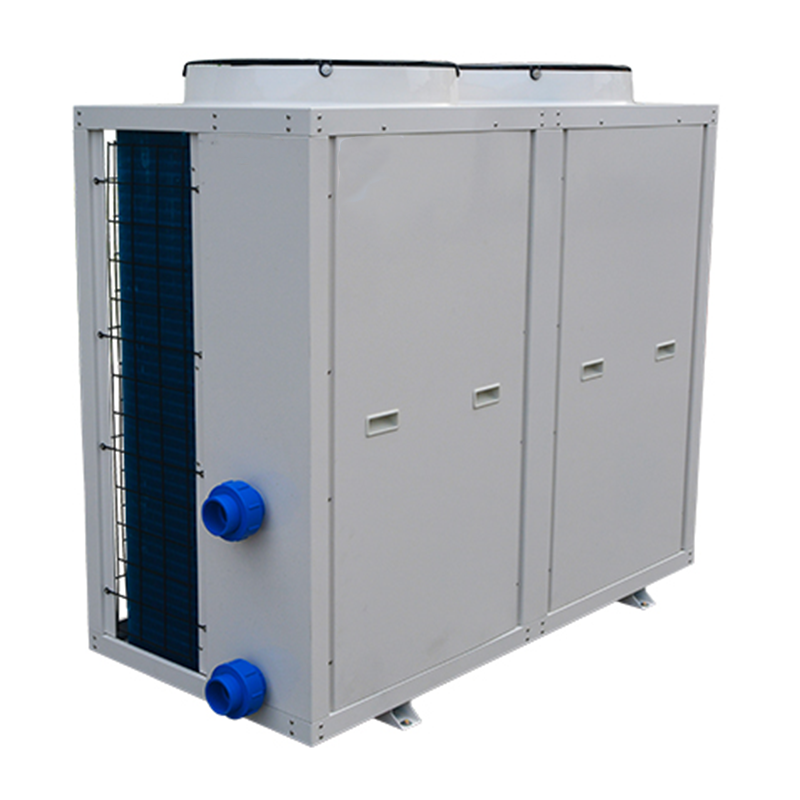

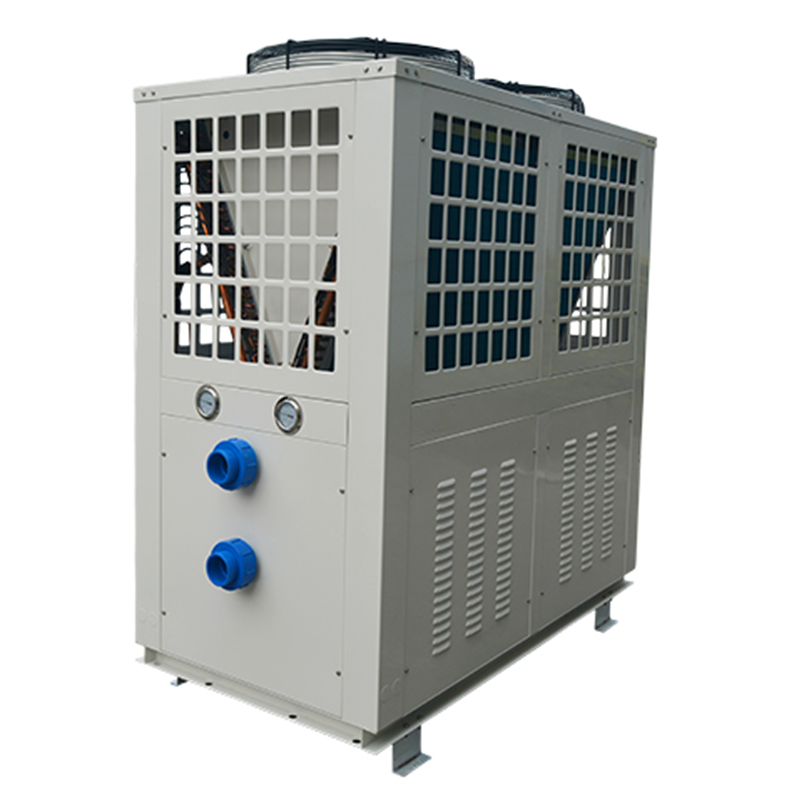

Swimming pool heat pump for pool heating system

swimming pool heat pump for pool heating system (2)

swimming pool heat pump for pool heating system (2)

swimming pool heat pump for pool heating system (2)

swimming pool heat pump for pool heating system (2)

swimming pool heat pump for pool heating system (2)

swimming pool heat pump for pool heating system (2)

* Advantages

Micro-panel control operation, smarter and more free
Using heat pump heating technology, it has high performance parameters (COP), and the annual average energy efficiency is as high as 5.0. Compared with the traditional heating method, the operating cost can be saved by 65%-80%
All-weather multi-stage timing function to avoid peak electricity prices and save operating costs
Fully intelligent mode, can set the unit's automatic shift duty
Real-time alarm, historical fault record, clear unit problems at a glance
Green environmental protection, energy saving
Using heat pump technology, compared with other conventional hot water equipment (such as: oil boilers, gas boilers, electric boilers, etc.), it can save 65% to 80% of operating costs, and it does not pollute the environment.
Safe, completely eliminate hidden dangers to use
Water and electricity isolation, no open flame, no leakage, to ensure personal safety, so it is the safest product, the normal life of the host is up to 15-20 years
Long life
Using dual-process titanium coil technology, it can resist the erosion of chloride ions and is completely harmless to the human body.
Stable performance, durable
Integral design, compact structure, beautiful appearance, small space occupation and easy installation

Model XRS-030H XRS-050H XRS-070H XRS-100H XRS-120H
Machine size(WxDxH) 710x710x820mm 800x800x1100mm 800x800x1100mm 1500x720x1200mm 1500x720x1360mm
Compressor (Copeland)ZW34KAx1 (Copeland)ZW61KAxl (Copeland)ZW79KAx1 (Copeland)ZW61KAx2 (Copeland)ZW72KAx2
Refrigerant R22/1.8Kgx1 R22/1.9Kgx1 R22/2.8Kgx1 R22/2Kgx1 R22/2.1Kgx2
Power supply 220V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Condenser  Titanium tube heat exchanger
Evaporator (finned) 550-670-550x750 U-1/φ9.52/25U (Tube) 550-700-580x900 U-1/φ9.52/25U (Tube) 680-700-680x900 U-1.5/φ9.52/25U (Tube) 2-510-590x900 L-2/φ9.52/25U (Tube) 2-650x1260 L-2/φ9.52/25U (Tube)
Gas-Liquid separator LF8W5A-03Ax1 KFR120WLG-Ax1 KFR120WLG-Ax1 KFR120WLG-Ax2 KFR120WLG-Ax2
Four-way valve Sanhua)SHF-1 1 -45D1x1 (Sanhua)SHF-20A-46x1 (Sanhua)SHF-20A-46x1 (Sanhua)SHF-20A-46x2 (Sanhua)SHF-20A-46x2
Expansion valve 2.4 3.2 3.2 3.2x2 3.2x2
Unit access power line 3x2.5mm2 3x4mm2+2x2.5mm2 3x6mm2+2x2.5mm2 3x10mm2+2x4mm2 3x10mm2+2x4mm2
Rated heating capacity 11KW 19.2KW 26KW 38KW 44KW
Heating input power 2.6KW 4.5KW 6.4KW 9KW 11KW
Rated current 12A 9A 13A 18A 22A
COP (unit energy efficiency) 5.79 5.56 5.65 5.56 5.56
Rated water temperature 28°C 28°C 28°C 28°C 28°C
Max. water temperature 40°C 40°C 40°C 40°C 40°C
Discharge of water 2364L/H 4299L/H 5589L/H 8598L/H 9888L/H
Waterproof grade IPX4 IPX4 IPX4 IPX4 IPX4
Anti electric shock level I type I type I type I type I type
Noise ≤ 55dBA ≤ 58dBA ≤ 58dBA ≤ 66dBA ≤ 68dBA
Net weight 90Kg 125Kg 135Kg 280Kg 372Kg
Gross weight 96Kg 135Kg 145Kg 295Kg 412Kg
Nozzle size / internal tooth (mm) φ25 φ32 φ32 φ63 φ63
Model XRS-150H XRS-200H XRS-250H XRS-300H XRS-500H
Machine size(WxDxH) 1500x800x1560mm 1850x1000x1950mm 2000x1100x2080mm 2300x1100x2150mm 4000x2000*4160mm
Compressor (Copeland)ZW72KAx2 (Copeland)ZW61KAx4 (Copeland)ZW72KAx4 (Copeland)ZW79KAx4 (Copeland)ZW286KAx4
Refrigerant Titanium tube heat exchanger
Power supply 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Condenser Titanium tube heat exchanger
Evaporator (finned) 2-650x1260 L-3/φ9.52/25U (Tube) 2-900x1500 V-3/φ9.52/25U (Tube) 2-900x1700 V-3/φ9.52/25U (Tube) 2-900x2000 V-3/φ9.52/25U (Tube) 4-900x1700 V-3/φ9.52/25U (Tube)
Gas-Liquid separator KFR120WLG-Ax2 KFR120WLG-Ax4 KFR120WLG-Ax4 KFR120WLG-Ax4 KFR120WLG-Ax4
Four-way valve (Sanhua)SHF-20A-46x2 (Sanhua)SHF-20A-46x4 Sanhua)SHF-20A-46x4 (Sanhua)SHF・20A・46M (Sanhua)SHF-20A・46x4
Expansion valve 3.2x2 3.2x4 3.2x4 3.2x4 3.2x4
Unit access power line 3x10mm2+2x4mm2 3x16mm2 +2x6mm2 3x16mm2+2x6mm2 3x25mm2+2x6mm2 3x32mm2+2xl2mm2
Rated heating capacity 52KW 76KW 88KW 104KW 176KW
Heating input power 12.8KW 18KW 21KW 25KW 42KW
Rated current 26A 36A 42A 50A 84A
COP (unit energy efficiency) 5.65 5.56 5.48 5.65 5.65
Rated water temperature 28°C 28°C 28°C 28°C 28°C
Max. water temperature 40°C 40°C 40°C 40°C 40°C
Discharge of water 11177L/H 17196L/H 19775L/H 22355L/H 39550L/H
Waterproof grade IPX4 IPX4 IPX4 IPX4 IPX4
Anti electric shock level I type I type I type I type I type
Noise ≤ 68dBA ≤ 68dBA ≤ 72dBA ≤ 72dBA ≤ 72dBA
Net weight 372Kg 482Kg 582Kg 582Kg 1164Kg
Gross weight 412Kg 532Kg 642Kg 642Kg 1284Kg
Nozzle size / internal tooth (mm) φ63 φ63 φ90 φ90 φ10
