SCD sand filter made of fiberglass and resin of high quality has good chemical resistance and the performance of anti-UV. Its surface is not easy to crack and be broken by the impact because sand filter itself has a certain degree of flexibility. The water distribution designed uniquely can stabilize current uniformly and to improve drainage system. It is easy to install, repair and convenient for maintenance. After filtration, turbidity of water is less than 2 degrees. It brings cleanliness and sanitation for your swimming pool and it is preferred filtration equipment for swimming pool, spa pool, waters cape and Water Park.
* Features
Filter body covered with ultraviolet-proof layers of polyurethane
Ergonomic six-way valve in seating design
With excellent filtering capabilities
Anti-chemical corrosion
It equips with gauge
This Modell with the function of flushing, you can run it only by simple
Operation when in need, thus additional costs at maintenance could be saved
The equipment of sand valves at the bottom row provide convenience for removal or replacement of sand in filter
Using 0.5-0.8mm Standard quartz Sand
Packing: Cartoon/gallows
Working pressure: 250kpa
Test pressure: 400kpa
Maximum temperature: 45°C
|

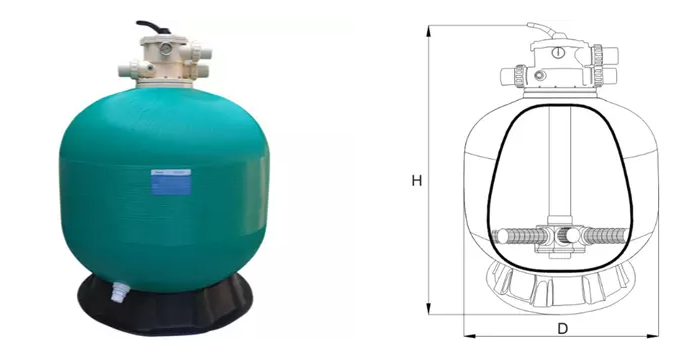

Model |
Size (D) |
inlet/outlet (inch) |
flow (m7h) |
filtration (m2) |
Sand Weight (kg) |
height H (mm) |
|
SCD400 |
16"/Φ400 |
1.5" |
6 |
0 |
35 |
435 |
| SCD450 | 18"/Φ450 |
1.5" |
7 |
0 |
50 |
725 |
| SCD500 | 20"/Φ500 |
1.5" |
10 |
0 |
80 |
805 |
| SCD600 | 24"/Φ600 |
1.5" |
15 |
0 |
160 |
875 |
| SCD700 | 28"/Φ700 |
1.5" |
19 |
0 |
220 |
975 |
| SCD800 | 32"/Φ800 |
2" |
25 |
1 |
370 |
1145 |
| SCD900 | 36"/Φ900 |
2" |
30 |
1 |
447 |
1255 |
| SCD1000 | 407"/Φ1000 |
2" |
35 |
1 |
700 |
1350 |
| SCD1100 | 44"/Φ1100 |
2" |
44 |
1 |
960 |
1490 |
| SCD1200 | 48"/Φ1200 |
2" |
50 |
1 |
1200 |
1555 |
| SCD1400 | 56"/Φ1400 |
2" |
68 |
2 |
1700 |
1775 |
